300W逆變器,300W Power Inverter

關鍵字：逆變電路及圖

Here is a schematic 300W power inverter with 12 volt batteries as a source. This inverter is controlled by 555 timer and CD4017 decade counter. You should try to build this inverter, because it can be used to power load 300W. With the power was sufficient to illuminate a few light bulbs at night for your camping needs.

This 300W power inverter is quite simple but powerful, efficient, and stable. The inverter is built using a 10V center tap transformer. A 555 Timer IC and a 4017 decade counter IC used to produce a modified sine wave of 50 Hz.

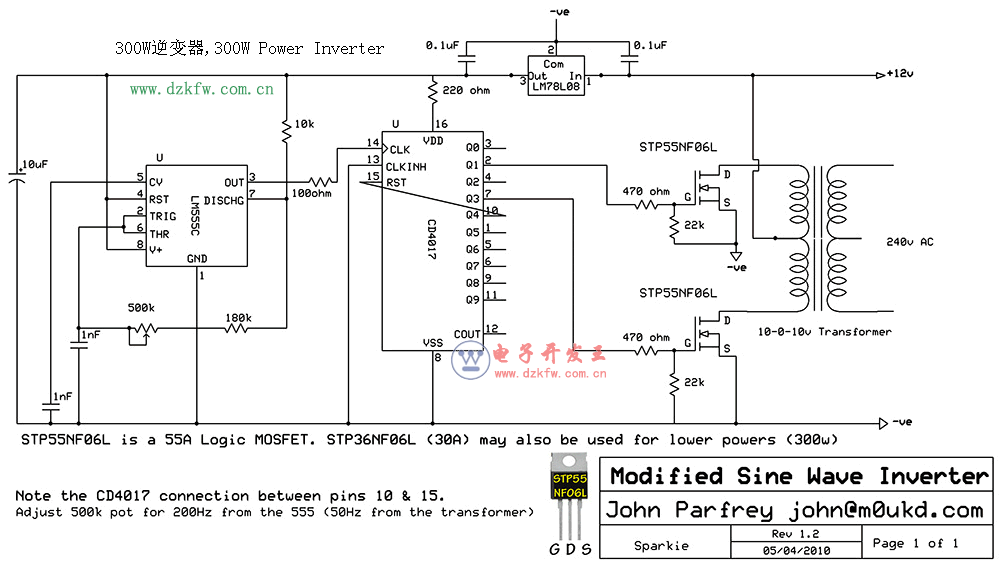

300W Power Inverter Circuit Diagram


300W Power Inverter Circuit

Timer 555 will produce a frequency of 200 Hz (see the schematic for more info) by adjusting the potentiometer value of 500K. CD4017 produces the pulse trains on pin 2 and pin 7 of  CD4017 is connected to the gates of the MOSFET STP36NF06L. It then directed to the transformer primary side. There will be 220V AC at the transformer secondary side of the 300W power inverter.

In order for the inverter system can run to efficiently use the cooling fan, even though the heatsink is still needed. Be careful you are working with AC power at the output of the 300W power inverter.

這里是一個300W功率逆變器的電路圖，12伏電池作為一個電源。該變頻器由555定時器和CD4017十進制計數器控制。你可以嘗試建立這個逆變器，因?yàn)樗�可以用來�?00W負載供電。在晚上為了野營的需要，足以照亮一盞燈泡。

這款300W的逆變器非常簡單但功能強大，高效穩定。逆變器使用10V中心抽頭變壓器構建。一個555定時器IC和一個4017十進制計數器IC，用來產生一個50Hz的修正正弦波。

300W功率逆變器電路圖


300W電源逆變器電路

定時器555將通過調整500K的電位器值產生200赫茲的頻率（更多信息參見原理圖）。 CD4017產生CD4017的引腳2和引腳7上的脈沖串連接到MOSFET STP36NF06L的柵極。然后導向變壓器初級側。 300W逆變器的變壓器二次側會有220V的交流電。

為了使變頻器系統能夠有效地使用冷卻風扇，即使仍然需要散熱器。請注意，在300W功率逆變器的輸出端使用交流電源。
